Sunglass Base Curve Explained: What It Is and How to Choose the Right One
Base curve is one of the most misunderstood specs in eyewear and yet it's the single biggest factor determining how well your sunglasses fit your face, block peripheral light, and work with prescription lenses. This guide covers everything you need to know, from the optics behind the number to a practical decision framework for every face shape and activity.
- What is the base curve of a sunglass lens?
- How base curve is measured
- The complete base curve spectrum (Base 2 through Base 10)
- Which base curve should you choose?
- Base curve and prescription lenses
- How face shape affects your ideal base curve
- Base curve vs. lens wrap angle — what's the difference?
- Frequently asked questions
1. What is the base curve of a sunglass lens?

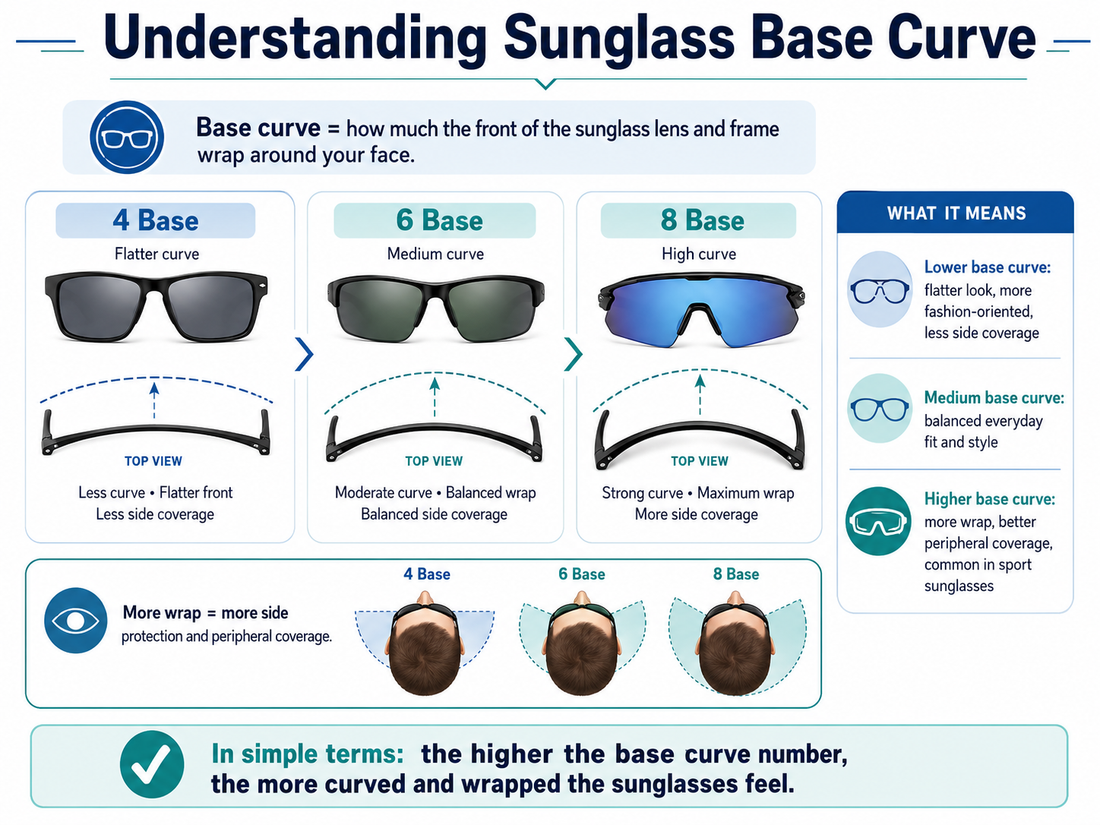

The base curve (often abbreviated BC) is a number that describes the curvature of the front surface of a sunglass or ophthalmic lens. Specifically, it measures how steeply the lens curves from its optical center out toward the edges — expressed in diopters, the same unit used to measure prescription strength.
A higher base curve number means a more curved, "wrapped" lens. A lower number means a flatter lens that sits more perpendicular to your line of sight. This single measurement has a cascade of effects: how closely the frame hugs your face, how much peripheral vision it protects, how the lens interacts with ambient light, and critically, how well it can accommodate a prescription without introducing optical distortion.
2. How base curve is measured
Base curve is measured using a tool called a lens clock (or Geneva lens measure) — a small dial gauge with three contact points that detects the curvature of a lens surface and converts it to a diopter reading. The measurement reflects the sphere power a lens of that curvature would have if it were made of crown glass with a refractive index of 1.53.
When manufacturers list a base curve on a product page or spec sheet, they are referring to the base curve of the front surface of the lens as it leaves the factory. Prescription lenses are then ground on the back surface to achieve the required correction while maintaining that front curvature.
3. The complete base curve spectrum
4. Which base curve should you choose?
The right base curve depends on four intersecting factors: your intended activity, your face shape, whether you need a prescription, and the look you're after. Here's a practical decision framework:
5. Base curve and prescription lenses
This is where base curve selection becomes genuinely critical. The relationship between the front base curve and the back prescription grind determines whether your lenses will produce clear, undistorted vision — or chronic headaches and visual fatigue.
THE VOGEL'S RULE OF THUMB
Optical laboratories traditionally use Vogel's Rule to determine the ideal base curve for a given prescription: add the sphere power to half the cylinder power, then add 6. This formula produces the base curve that minimizes prismatic aberration and peripheral distortion for most wearers.
When a wearer with a significant prescription insists on a high-wrap Base 8 frame, the laboratory must use a freeform (digital) lens to compensate for the peripheral distortion introduced by the steep base curve. These lenses are ground with a computer-controlled process that corrects for the additional prismatic effects — but they cost significantly more than standard stock lenses.
| BASE CURVE | PRESCRIPTION RANGE | LENS TYPE NEEDED | COST PREMIUM |
|---|---|---|---|
| Base 2–4 | Any | Standard stock lens | None |
| Base 6 | Up to ±4.00 | Standard stock lens | None |
| Base 8 | Up to ±2.00 | Standard stock or freeform | Moderate |
| Base 8 | ±2.00 to ±6.00 | Freeform digital required | Significant |
| Base 10 | Plano only | Non-corrective only | N/A |
6. How face shape affects your ideal base curve
Base curve and face shape interact in two ways: optical fit and aesthetic proportion. A lens that curves too aggressively for a narrow face will sit too far from the eyes, reducing optical effectiveness. A lens too flat for a wide face will leave gaps at the temples, allowing peripheral UV exposure.
7. Base curve vs. lens wrap angle — what's the difference?
These two terms are often confused, and some brands use them interchangeably. They are related but distinct measurements.
Base curve is an optical measurement of the front lens surface curvature in diopters. It describes the lens itself.
Wrap angle is the geometric angle at which the lens plane is tilted relative to a vertical line through the face — typically measured in degrees. It describes the frame construction.
A frame with a high wrap angle (say, 20°) typically requires a high base curve lens to maintain proper optical alignment with the eye. But a high base curve lens can be mounted in a frame with a lower wrap angle. Most premium sport frames are engineered so that the base curve and wrap angle are matched — this is why off-the-shelf lenses from lower-curvature frames cannot simply be swapped into a high-wrap sport frame.
8. Frequently asked questions
What base curve do most sunglasses use?
The majority of everyday sunglasses use a Base 6 lens. It offers a good balance of coverage, comfort for most face shapes, and compatibility with a wide range of prescriptions. Base 8 is the standard for sport and wraparound styles.
Can I get a prescription in a Base 8 sunglass?
Yes, but with caveats. Prescriptions up to approximately ±2.00 sphere can be made in Base 8 frames using standard lenses. Higher prescriptions require freeform digital lenses, which are more expensive but deliver optically correct results in highly curved frames.
Does a higher base curve mean better UV protection?
Not directly — UV protection is a property of the lens material and coating, not the curve. However, a higher base curve frame wraps closer to the face, physically blocking more peripheral UV from reaching the eye around the edges of the lens. Both factors matter for complete UV defense.
What is the best base curve for cycling sunglasses?
Base 8 is the industry standard for cycling eyewear. The high wrap keeps lenses secure at speed, blocks wind and debris from the sides, and provides full peripheral UV protection. Most performance cycling brands — Oakley, Rudy Project, POC — build their road and mountain frames around Base 8 lenses.
How do I find out the base curve of my current sunglasses?
An optician can measure it in seconds with a lens clock. Alternatively, many manufacturers list the base curve in the technical specs on their product pages. If neither is available, a gentle visual inspection helps: flat lens = Base 2–4, moderate curve = Base 6, pronounced wrap = Base 8+.
Is a Base 8 lens the same as an 8-base lens?
Yes — "Base 8" and "8-base" are the same measurement written in different orders. Both refer to an 8-diopter front surface curvature. Some manufacturers also write it as "BC 8" or "8BC."
Can the wrong base curve cause headaches?
Yes, particularly for prescription wearers. When a prescription is ground onto a base curve that is mismatched to the power — especially in high-wrap frames — it introduces prismatic distortion that forces the eyes to compensate. This manifests as eyestrain, headaches, and blurred peripheral vision, particularly after prolonged wear.
